Terminal Block Kits

Weidmuller has developed a full range of terminal block kits. These kits have been specifically designed and build to provide connections between field wiring and various controllers. There are versions for 8 channels and 16 channels (with or without disconnects) all with the option to have integrated grounding (PE) at the rail.

Terminal Block Kits

Terminal Block Kits

For ease of use and flexibility, nothing beats terminal blocks. Weidmuller has created a selection of pre-bundled kits using the industry leading multi-function terminal block line, the WMF series.

The kits include:
• 4, 8, 16, 32 channel versions
• Pluggable and screw connections
• Integrated ground (PE)
• Versions with or without test points
• Versions with or without disconnect

Terminal Blocks Visit eShop

Order no. 7940100537

Terminal Block Kit 7940100537

Terminal Block Kit

WMF 2.5 BLZ Terminal Assembly
Markers included 1 thru 4
4-channel
With pluggable BLZ interface
Compatible with Honeywell C300 IOTAs

Order no. 7940112341

Order no. 7940112341

Terminal Block Kit

WMF 2.5 FU 24VDC BLZ and WMF 2.5 BLZ PE Terminal Assembly
Markers included 1 thru 32
16-channel
Screw connection to pluggable connection
Fuse, Feed-Through, and PE for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940103792

Order no. 7940103792

Terminal Block Kit

WMF 2.5 DI BLZ and WMF 2.5 BLZ PE Terminal Assembly
Markers included 1 thru 16
8-channel
With integrated ground connection
With pluggable BLZ interface
Disconnect, feed-through, and PE for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940109735

Order no. 7940109735

Terminal Block Kit

WMF 2.5 DI BLZ and WMF 2.5 DI BLZ Terminal Assembly
Markers included 1 thru 16 vertical
8-channel
With pluggable BLZ interface
Disconnect and Feed-Through for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940100920

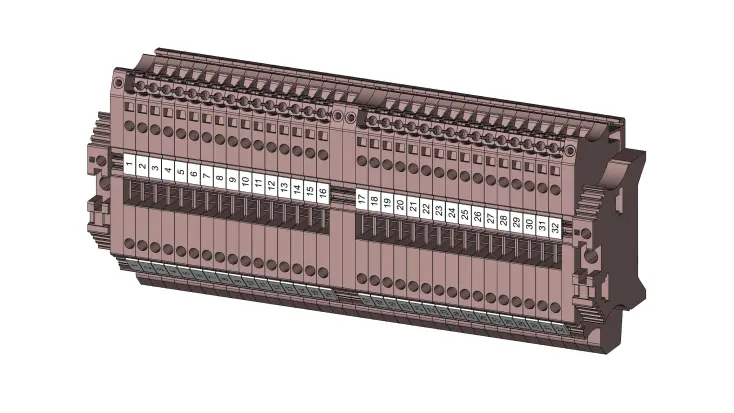

7940100920 terminal block kit

Terminal Block Kit

WMF 2.5 BLZ Terminal Assembly
Markers included 1 thru 32 vertical
16-channel
Screw connection to pluggable connection
Compatible with Honeywell C300 IOTAs

Order no. 7940100538

Order no. 7940100538

Terminal Block Kit

WMF 2.5 DI BLZ and WMF 2.5 BLZ PE Terminals
Markers included 1 thru 32
16-channel
With pluggable BLZ interface
Disconnect, Feed-through, and PE for each channel
Compatible with Honeywell C300 IOTAs

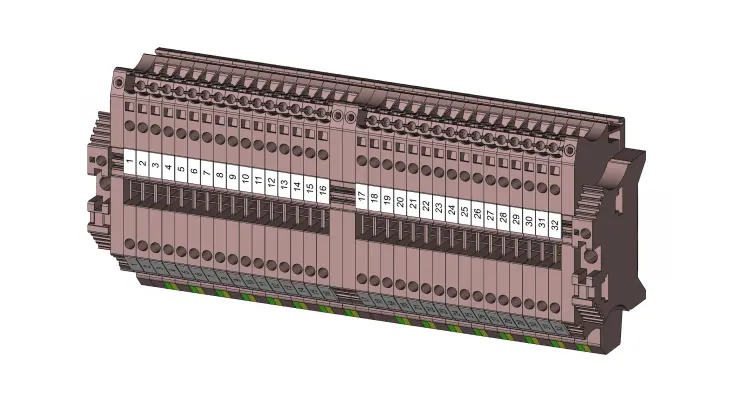

Order no. 7940100665

Order no. 7940100665

Terminal Block Kit

WMF 2.5 BLZP and WMF 2.5 BLZP PE Terminal Assembly
Markers included 1 thru 32 vertical
16-channel
With pluggable BLZ interface
With Feed-Through and PE connection for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940100540

7940100540 terminal block kit drawing

Terminal Block Kit

WMF 2.5 DI BLZ and WMF 2.5 BLZ Terminal Assembly with disconnects
Markers included 1 thru 32 vertical
16-channel
With pluggable BLZ interface
Disconnect and Feed-through for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940103814

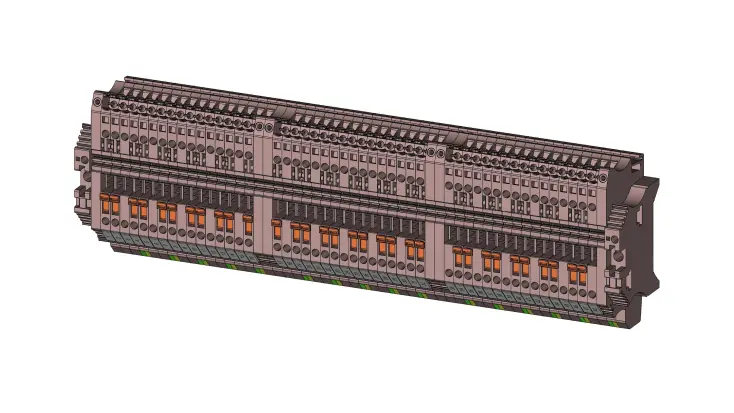

7940103814 terminal block kit

Terminal Block Kit

WMF 2.5 DI BLZP and WMF 2.5 BLZP PE Terminal Assembly
16-channel 3-wire / Differential / 48-pole version
With pluggable BLZ interface
Disconnect and Feed-Through for each channel
Compatible with Honeywell C300 IOTAs

Order no. 7940100681

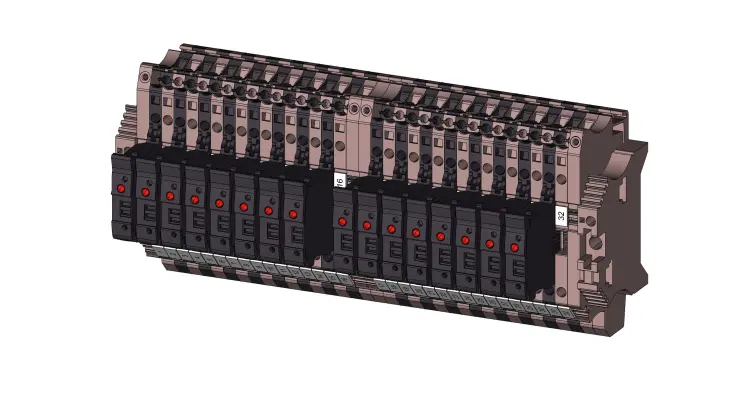

7940100681 terminal block kit

Terminal Block Kit

WMF 2.5 FU 24VDC BLZ and WMF 2.5 BLZ Terminal Assembly
Markers included 1 thru 32 vertical
16-channel
With pluggable BLZ interface
Fuse and Feed-Through for each channel
Compatible with Honeywell C300 IOTAs
