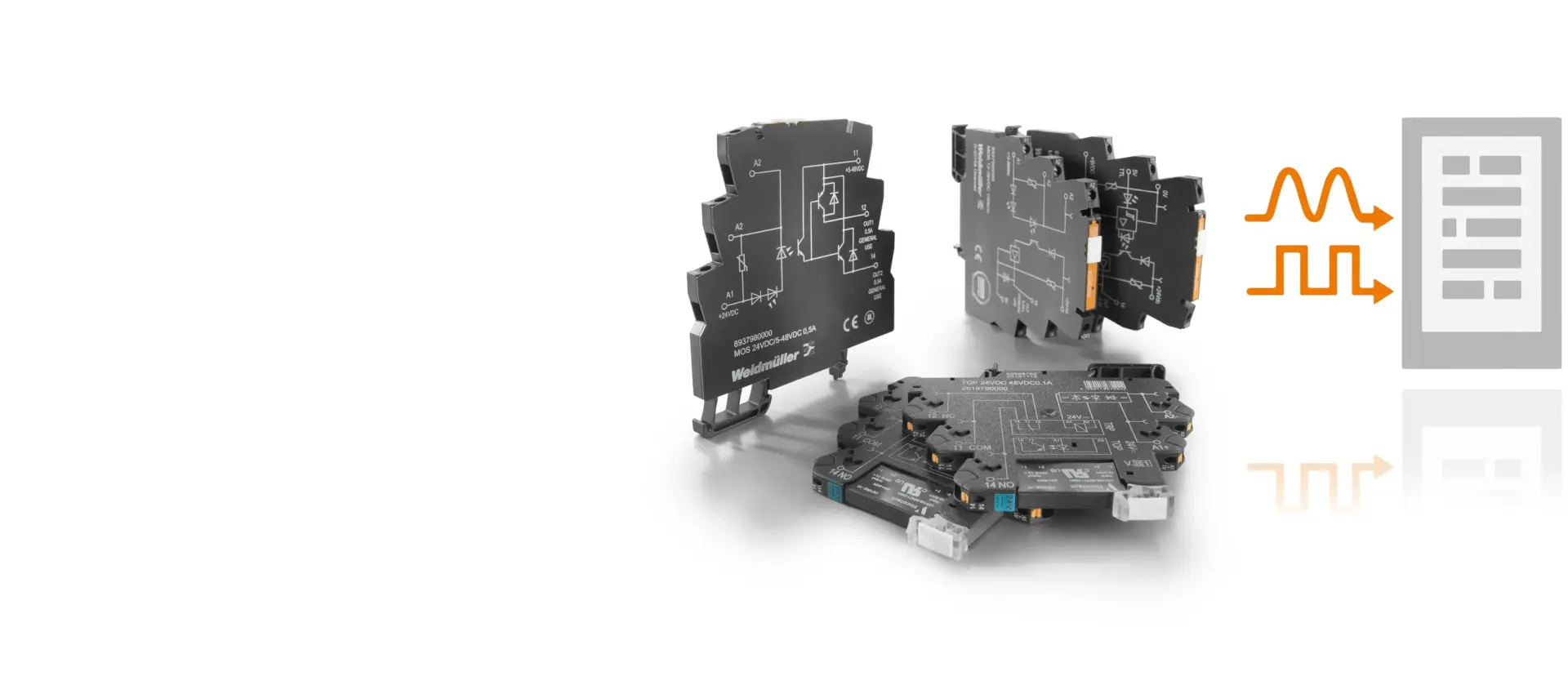

Signal adaption

Individual tailor-made relays

To adapt signals and transmit them from other systems at the panel level, relays and solid-state relays are required that are precisely tailored to the application. We offer you a range of high-quality and particularly space-saving relay products for these special applications.

In our portfolio you will find, for example, special variants for transmitting 5 V TTL signals to the inputs and outputs of PLC systems or industrial computers. What‘s more, we offer variants which, in contrast to conventional 1 NO contact solid-state relays, have a 1 CO contact output. These products are particularly suitable for inverting signals.

Our product range

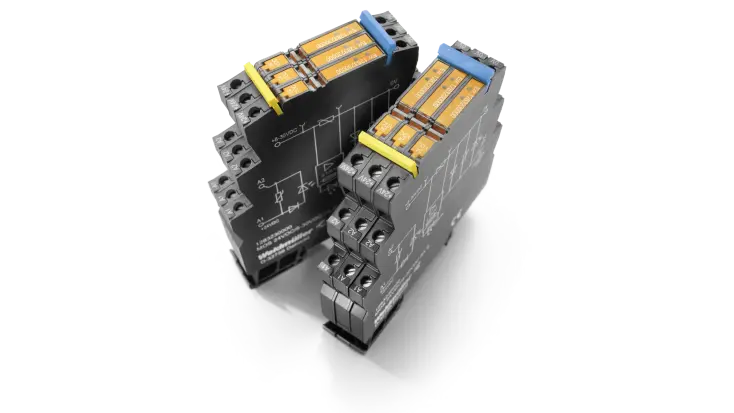

MICROOPTO

Space-saving and high-quality solid-state relays in modular terminal block design for signal adaption.

For 5 V TTL inputs and outputs
1 changeover Version
Only 6.1 mm width
Integrated protective circuit for inputs and outputs
Suitable accessories from the cross-connection to the marker

Go to product catalog

Description	Article number
MOS 24VDC/5-48VDC 0.5A	8937980000	Go to product catalog
MOS 5VTTL/24VDC 0.1A	8937920000	Go to product catalog
MOS 12-28VDC/5VTTL	8937930000	Go to product catalog

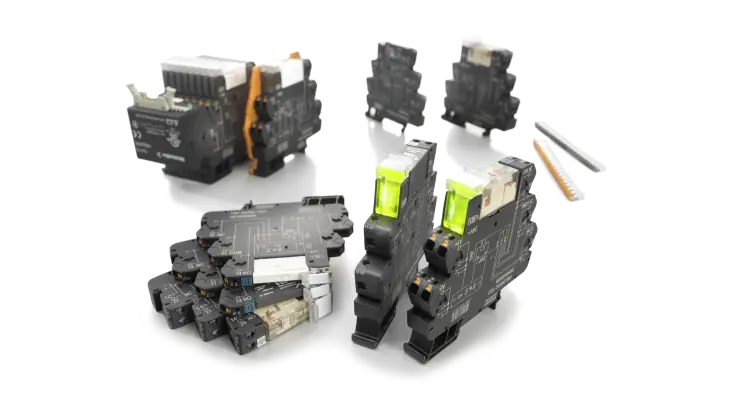

TERMSERIES

The 5 V DC and 12 V DC input versions of our TERMSERIES allows you unlimited cross-connection possibilities.

Available from 6 mm width
1 and 2 CO contacts
High-quality design without sharp edges
Partition plates for optical separation and reinforcement of insulation
Large illuminated ejection lever as status LED with integrated marker holder

Go to product catalog

Description	Article number
TOP 5VDC 48VDC0.1A	2614860000	Go to product catalog
TOS 5VDC 48VDC 0.1A	1126920000	Go to product catalog
TOZ 5VDC 48VDC 0.1A	1127030000	Go to product catalog
TOP 12VDC 48VDC0.1A	2618600000	Go to product catalog
TOS 12VDC 48VDC 0.1A	1126930000	Go to product catalog
TOZ 12VDC 48VDC 0.1A	1127040000	Go to product catalog
TOP 5VDC 24VDC2A	2618810000	Go to product catalog
TOS 5VDC 24VDC2A	1127140000	Go to product catalog
TOZ 5VDC 24VDC2A	1127270000	Go to product catalog

Description	Article number
TOP 12VDC 24VDC2A	2618820000	Go to product catalog
TOS 12VDC 24VDC 2A	1127150000	Go to product catalog
TOZ 12VDC 24VDC 2A	1127280000	Go to product catalog
TOP 5VDC 230VAC1A	2614850000	Go to product catalog
TOS 5VDC 230VAC 1A	1127390000	Go to product catalog
TOZ 5VDC 230VAC 1A	1127510000	Go to product catalog
TOP 12VDC 230VAC1A	2618380000	Go to product catalog
TOS 12VDC 230VAC 1A	1127400000	Go to product catalog
TOZ 12VDC 230VAC 1A	1127520000	Go to product catalog

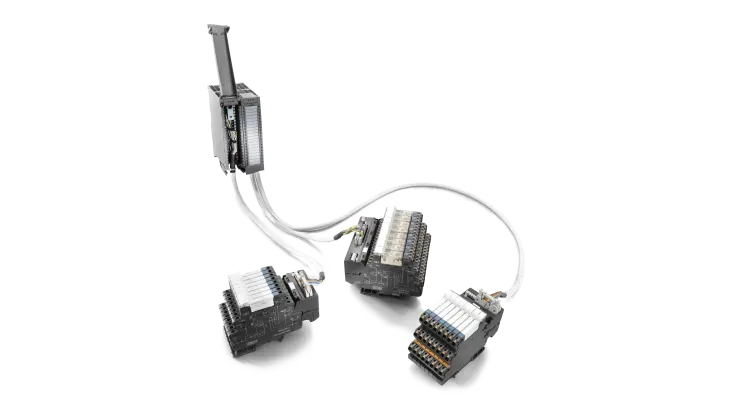

TERMSERIES interface adapter

Our TERMSERIES interface adapters speed up the wiring between the controller and the Interface level. In combination with our pre-assembled cables, the convenient plug-and-play solution reduces the wiring effort.

Your advantages

Reduced wiring time due to plug-and-play concept with pre-assembled cables
Can be applied to the input and output sides of the TERMSERIES relays and solid-state relays
Ready for use with plus and minus switching logic
High space saving due to universal fit to other TERMSERIES products
